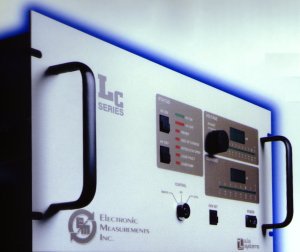

ALE LC1202 Series
1-40 kV, 12 kJ/sec, High Performance,
Water Cooled



Description

The LC Series are a new design of compact water cooled high performance solutions for high performance HV Capacitor Charging applications requiring extremely low pulse to pulse repeatability. The LC1202 capacitor charging power supply is capable of delivering peak output charge rates of 13.5kJ/sec and average rates of 12kJ/sec. If used for DC applications the unit can continuously deliver 15kW power. The unique phase shifting inverter design enables the supply to charge capacitive loads with shot to shot voltage repeatability of 0.1% and repetition rates up to 1kHz.
The LC1202 shares its topology with the XR series, but utilizes a brand new design of water cooled phase shifting resonant inverter. The use of a unique sealed water cooled HV tank assembly results in an 12kJ/second power supply in the same footprint as a standard 8kJ unit. The sealed HV tank also allows the unit to operate in any orientation unlike conventional high voltage power supplies. Since the LC series does not require external air for cooling it is particularly suitable for installation in tight spaces, or in adverse environments. Lambda EMI is the only company currently offering this advanced performance in a compact 12kJ/sec water cooled package.

Features

  • High repeatability to better than 0.1% at repetition. rates up to 1,000 Hz
  • Water cooled compact package results in 50% more power than 802 in same space
  • Field selectable 208 or 400VAC input voltage with no neutral
  • Ultra fast command charge timing cycle
  • Unlimited parallel capability for higher power
  • Sealed HV assembly allows operation in any orientation
  • On board external divider port for super high performance
  • Remote control compatibility with Series 802 and 402
  • New high reliability cable and connector minimizes corona effects at high repetition rate.
  • Available in three configurations - Instrumented, system, and blank panel.
  • Output voltages to 40 kV
  • Up to 12000 J/sec charging time
  • 15,000 W continuous output
  • UL safety approved

Applications

Excimer Lasers
Pulsed YAG Lasers
RF Modulators
HDTV Transmitters
 Grid Bias Supplies
N2 Lasers
Dye Lasers
TEA Lasers


Specification

AC Input
208 VAC or 400 VAC or 480 VAC, 3 phase, 50/60 Hz.
Field selectable with appropriate conversion kit 208/400 (VAC versions only).

Average Charging Rate
12000 J/s, at rated Output Voltage.

Peak Charging Rate
13500 J/s at rated Output Voltage.

DC Power Rating
15kW at rated Output Voltage.

Standard Voltage Ranges
1 kV, 1.5 kV, 2 kV, 3 kV, 4 kV, 5 kV, 6 kV, 10 kV, 15 kV, 20kV, 30 kV, 40 kV.
All models continuously vary from 0 to 100% of rated voltage output.
Linear to within 1% of full scale. Accuracy 1% of rated.

Polarity
Available as fixed Positive or Negative, Please Specify.

High Voltage Assembly
Sealed silicone oil Insulated HV section with zero air.

Output Connector/Cable

Output Voltage Connector Cable
1-40kV Proprietary DS 2214 80kV Rated

Input Connector
VDE, UL, CSA, approved.

Power Factor
Passive PFC 0.9 minimum

Efficiency
Better than 85%

Stored Energy
Less than 0.3 Joules all models.

 Stability
0.2% per hour after 1 hour warm-up.

Pulse to Pulse Repeatability
+/- 1% to 1000 Hz standard
+/- 0.1% to 1000 Hz available

Temperature Coefficient
100 PPM per oC

Ambient Temperature
Storage: -40 to +85oC
Operating: -20 to +45oC

Cooling
Flowed water at 2US GPM (7.6L/min) max. inlet temperature 35oC. All water paths are at ground potential and are copper brass or hydraulic hose

Humidity
10-90% Non-condensing

Protection
The power supply is protected against open circuits, short circuits, overloads and arcs.

Agency Approvals
Certification to EN60950/UL1950 (pending)

Mechanical
19" rack (483mm) x 17"(432mm) x 8.72"(222mm)

Accessories
- Detachable 10 foot HV cable
- Operating manual

Options

Suffix-FRI Optional external filter which reduces conducted emissions to meet VDE0871/6.78 Class B.
Suffix-HL "Low Inhibit" - A + 10 to 15 volt (high) signal will allow power supply operation. A 0 to +1.5 (low) signal will inhibit the supply.
Suffix-EN "Low Enable" - A + 10 to 15 volt (high) signal will disable power supply operation. A 0 to +1.5 volt (low) signal will enable the supply.
Suffix-5V 0 to +5 volt voltage (0 to full-scale output)
Suffix-LP Latching overload protection
Suffix-RS Remote sense
Suffix-CT Optional internal contactor for OEM only (standard on L/S models)


Ordering Example

LC1202S - 2.5kV - POS - 208VAC - LH
Model   Voltage   Polarity   Input
Voltage		   Options
